Схема телевизора LG 47LV370S-ZB (Service Manual Chassis LD12B, EAX63557704), Закачал: AlexeySold
-
Схема телевизора LG 47LV370S-ZB (Service Manual)

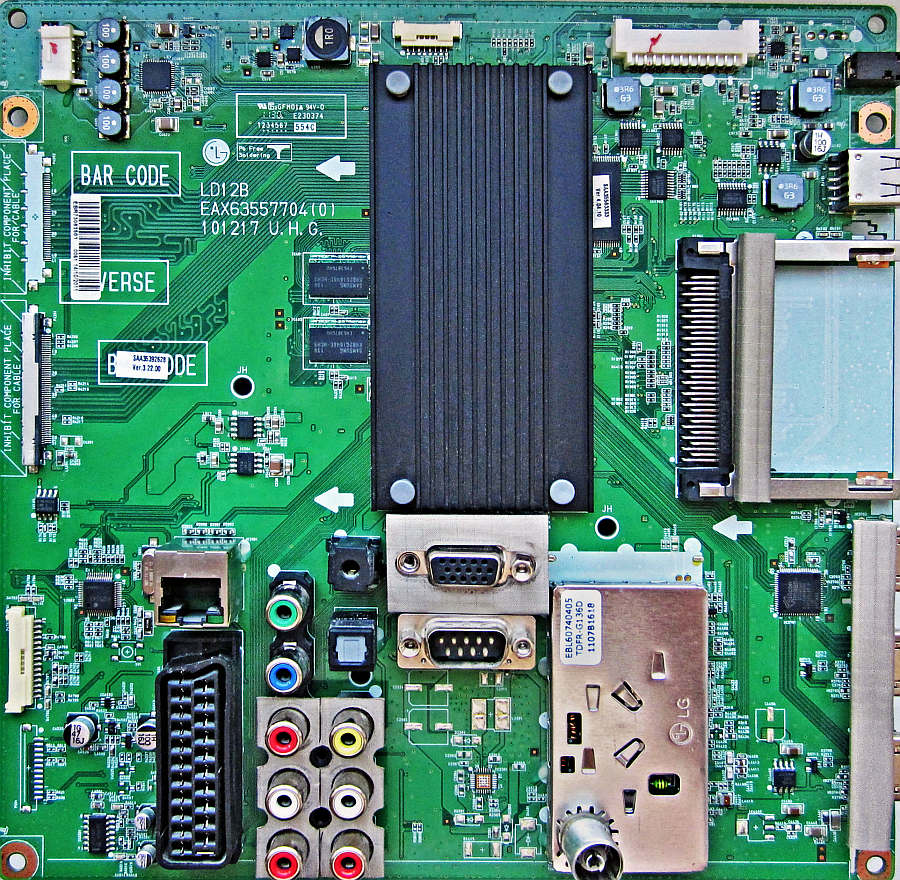

- Main Board: EAX63557704 (0) - EBR73063508
- Chassis: LD12B
- LCD Panel: LC470EUE (SD)(V1)
- T-CON: TM120HZ TETRA 6870C-0368A
- LED driver (backlight): integrated into PSU
- PWM LED driver: FAN7930B
- Power Supply (PSU): EAX62865401/8 LGP4247-11SLPB
- PWM Power: FAN7930B (PFC), 3BR4765JZ (Standby), L6599AD (PWM Resonant)
- Cpu: LGE35230,
- Nand: TC58DVG3S0ETA,
- DDR: K4B2G1646C,
- Eeprom: 24C1024
- Tuner: TDFQ-G001D
